- Forklift Pockets
- Lifting Points at the Same Height
- Motor Guard
- Quick-Connect Coupling
- 100 Kn Drum Pulling Force, 300 Kn Braking Load
Engineering Challenge & On-Site Alignment
Eagle Marine, an elite team of passionate marine engineers and naval architects dedicated to transforming the Middle East marine and offshore sector, approached Datai Marine to design a highly specialized mooring winch system for a barge project.
To transition from the preliminary quotation to deep technical alignment, we invited their technical delegation to our manufacturing facility. Following rigorous on-site workshops, Eagle Marine outlined three non-negotiable engineering constraints:
Advanced Structural Engineering & Materials

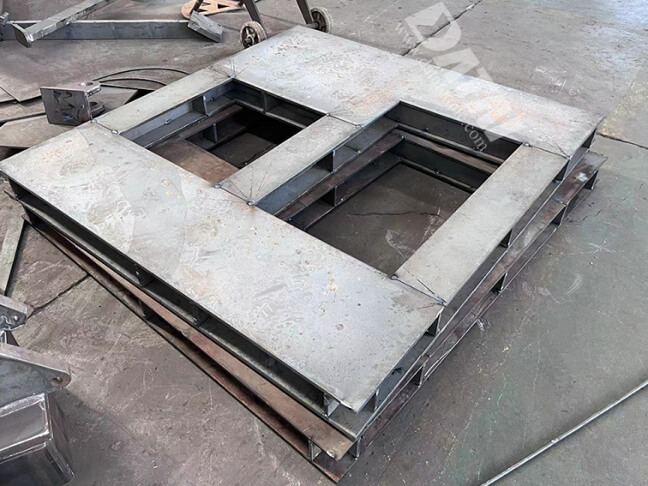

Our technical department rapidly executed finite element analysis (FEA) and structural load calculations. To achieve a 300kN static load capacity within the 1.2-meter height ceiling, we re-engineered the winch’s core architecture:
Optimized Design for Seamless Maritime Logistics

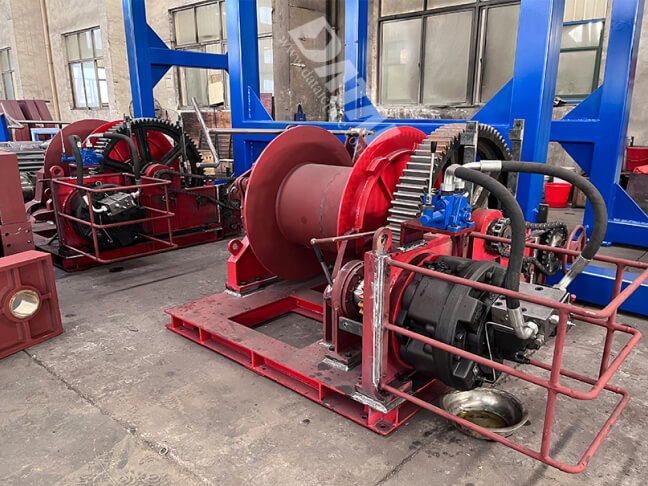

To solve the vessel-to-shore mobility challenge, our engineering team integrated multiple heavy-duty handling features directly into the winch chassis:

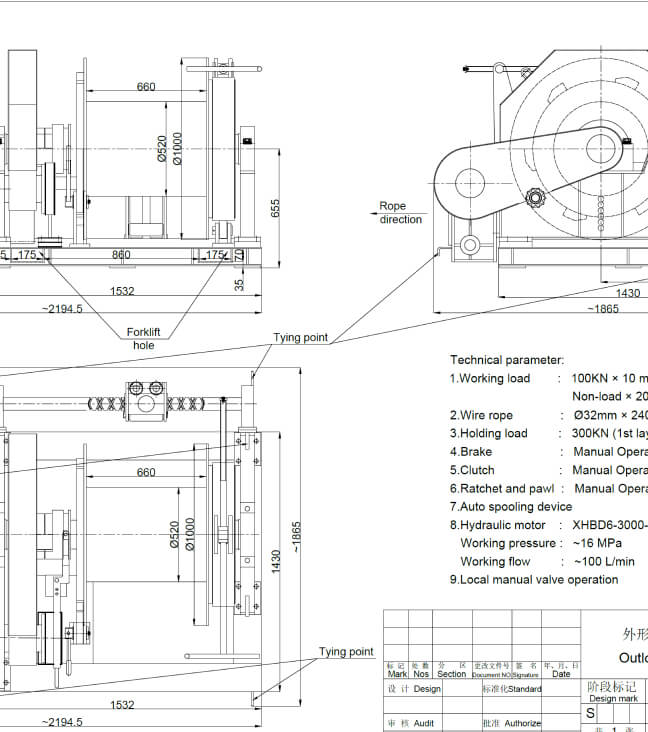

- Integrated Forklift Pockets & Lifting Eyes: Engineered dedicated forklift holes into the foundation and aligned four high-load lifting holes at the exact same height to prevent tilting during crane operations.
- Quick-Disconnect Hydraulic Couplings: Equipped the system with quick-connection oil pipe joints, enabling rapid, spill-free disconnection during transit.

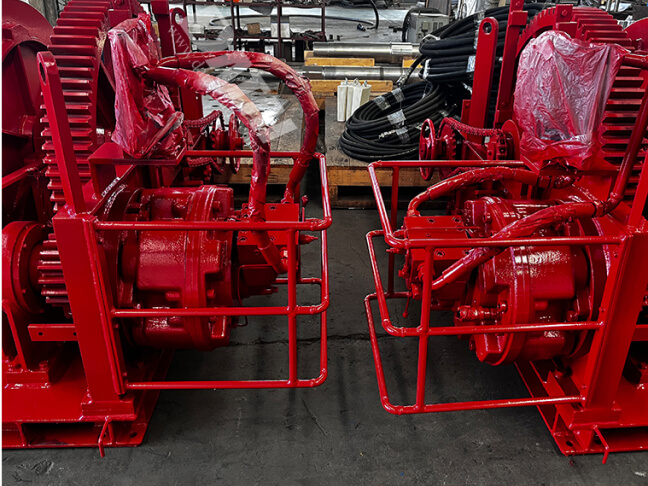

- Heavy-Duty Protective Grille: Added a robust steel grid cover to shield the hydraulic motor from accidental impacts during rough transportation and deployment.

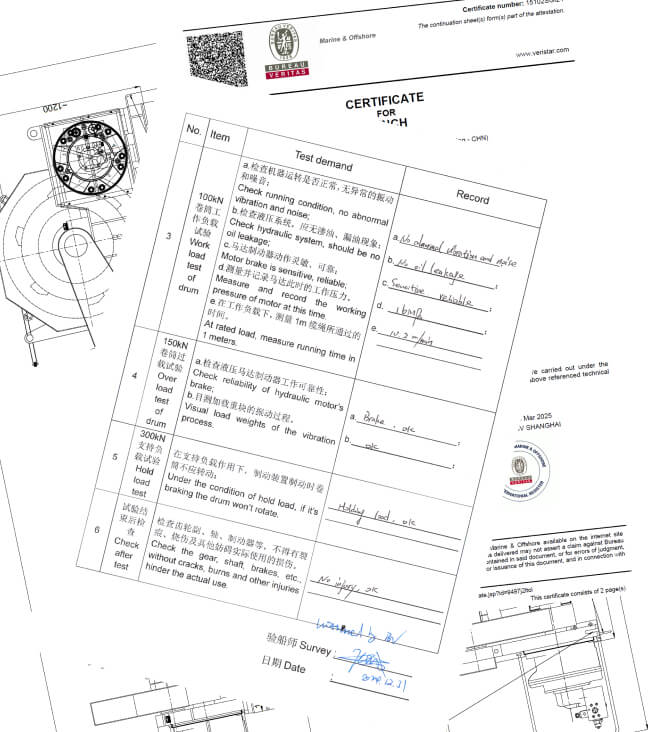

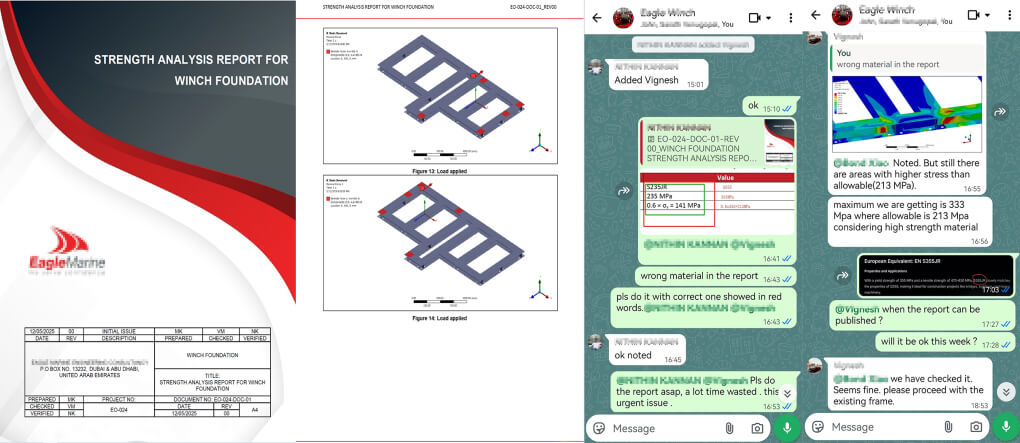

Eagle Marine reviewed the structural optimization alongside our foundation strength analysis reports and highly commended the layout, cross-verifying the design against stringent Bureau Veritas (BV) compliance standards.

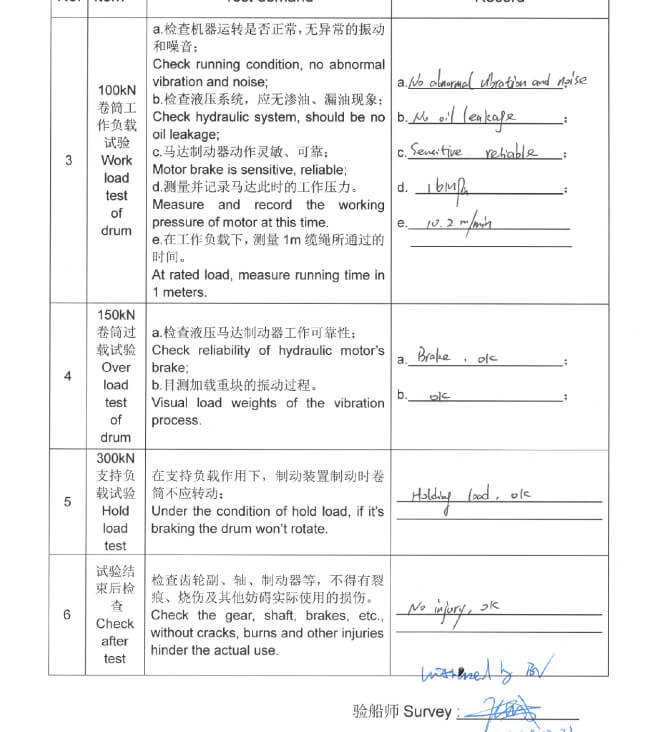

Rigorous Factory Acceptance Testing (FAT) & Delivery
Three months after the final blueprint freeze, production of the hydraulic mooring winch package was completed. The Eagle Marine engineering team returned to our facility to personally witness the comprehensive testing protocols.
The client spoke highly of our engineering execution and provided valuable field feedback that we have already integrated into our continuous improvement pipeline. We deeply value this partnership built on mutual technical trust.
