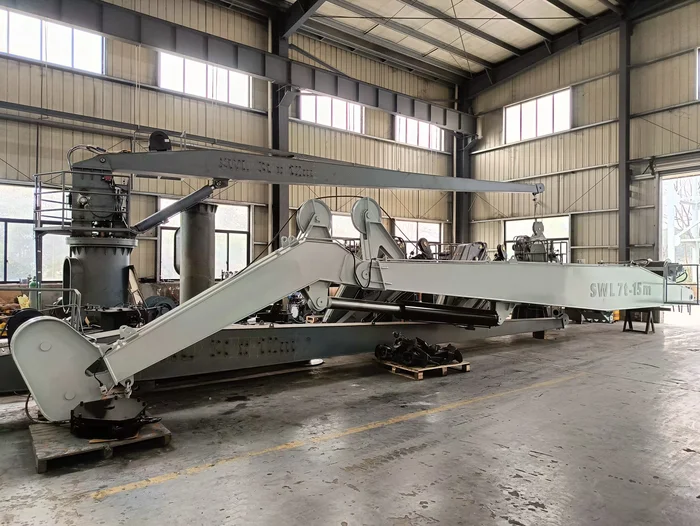

Description
Datai stiff boom crane is versatile ,high performance engineered for marine , offshore and wind industry applications , they are durability , reliability and efficient , this type crane can handle variety of tasks across various industries , it’s ideal crane for container and cargo handling , hose handling, provision and other applications .
DATAI stiff boom crane for marine application has features with light weight , compact design and reliable performance . Built on a robust pedestal slewing design with hydraulic cylinder luffing , it can performance three-motion efficiently . i.e hoisting , luffing and slewing.
Applications

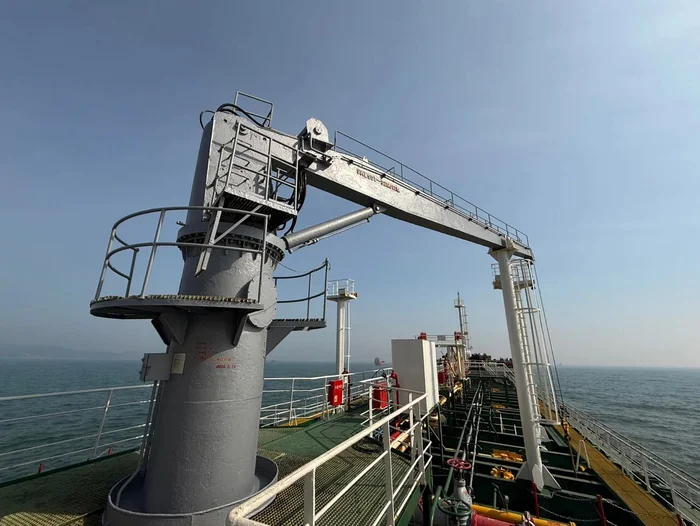

Marine applications
Datai stiff boom crane is high valued in marine industry because of it’s robust design and high performance ,the stiff boom crane is typically used as service crane , hose handling crane ,container or cargo handling cranes . Datai stiff boom crane deliver high performance in docks,harbors and on fixed installations .
Offshore Application
Datai stiff boom crane has excellent performance in harsh sea conditions to do lifting and handling tasks , it can be tailored as requirements and available with certifications to meet the international offshore standards . Commonly use as shipboard cranes, ship-to-ship cranes , hose handling cranes and provision cranes . They ensure safe and efficient lifting of hoses , cargos and supplies on offshore vessels and rigs .
Features
- Electric-hydraulic drive system
- low or high temperature operations .
- Intergrated HPU
- Fail-safe brakes
- Corrosion-resistant marine-grade surface treatment
- Control platform on crane
- Continuous slewing
Parameters
| Capacity (ton) | Radius (m) | Hook Speed (m/min) | Slewing Speed(r/min) | Pedestal Outer Diameter (mm) | Crane Weight (ton) |
| 1 | 9~12 | 10 | 0.5 | 700 | 3.1 |
| 2 | 4~20 | 10 | 0.5 | 1080~1225 | 3.1~8.1 |
| 3 | 6~20 | 10~15 | 0.5 | 1000~1250 | 4.8~8.9 |
| 4 | 8.1~15.5 | 10 | 0.5~1 | 1080~1250 | 5.2~5.6 |
| 5 | 13~26 | 10/20 | 0.5 | 1420~1960 | 8.7~38 |
| 6.5 | 13 | 10 | 0.5 | 1400 | 10650 |
| 7.5 | 8 | 15 | 1 | 1420 | 10830 |
| 8 | 14.5/25 | 10/20 | 0.5/0.8 | 1600/1900 | 12/38 |
| 10 | 16~25 | 10 | 0.6 | 2000/2200 | 21~24 |
| 12.5 | 22 | 12 | 0.6 | 2100 | 22 |
| 15 | 19~30 | 10/20/12 | 0.5/0.8/1 | 2200~2600 | 22~36 |
| 20 | 20 | 10/20 | 1 | 2245 | 37 |
| 25 | 21 | 20 | 1 | 2600 | 43 |
Note: Other non-standard , pls consult our engineers team .
Option Functions
- remote control or cabin control
- EXD IIBT4/EXD IICT4
- Safety & overload system :MOPS&AOPS
- Active Heave Compensation
- Constant tensioning
- Lifting of personnel
