Description
Slipway is widely used in shipyard to repair or maintenance vessels , especially for the inclined building berth that is fixed slope on the ground , after the hull is built on the base , it can slide into the water along the slope slide with the help of the inch , it is mostly used in the construction of medium or small-sized ships , the slipway winch can meet the water entry and exit conditions of ships of various tonnages .
The primary role of the slipway winch is to safety pull a ship out of water for maintenance , repairs or storage , because the slipway are sloped , the winch must manage high load against gravity to ensure the vessel and its cradle not slip .
At datai marine , we have single drum or three friction drums for the long distance job . the hydraulic and electric are available .

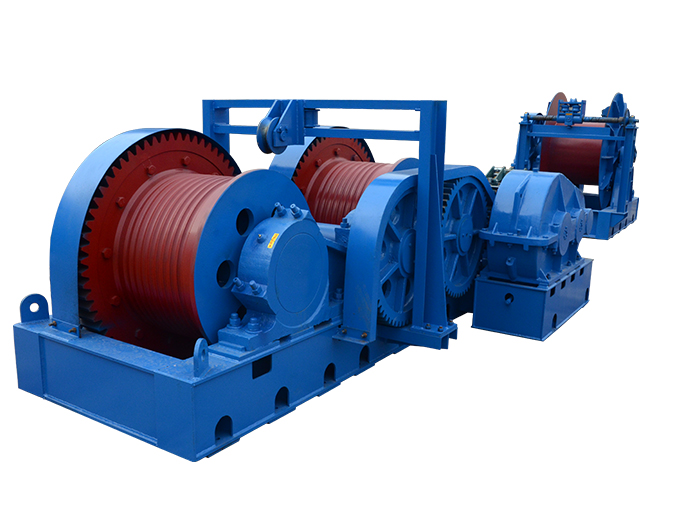

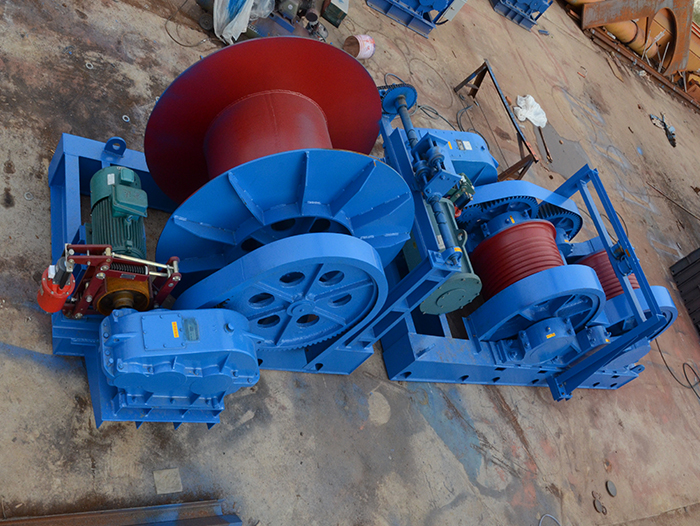

Friction winch
Friction Winch 02
Friction Winch 2

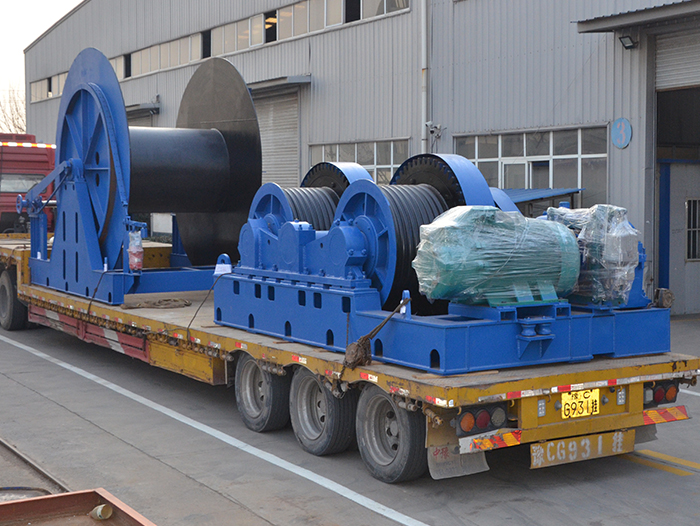

Traction Winch

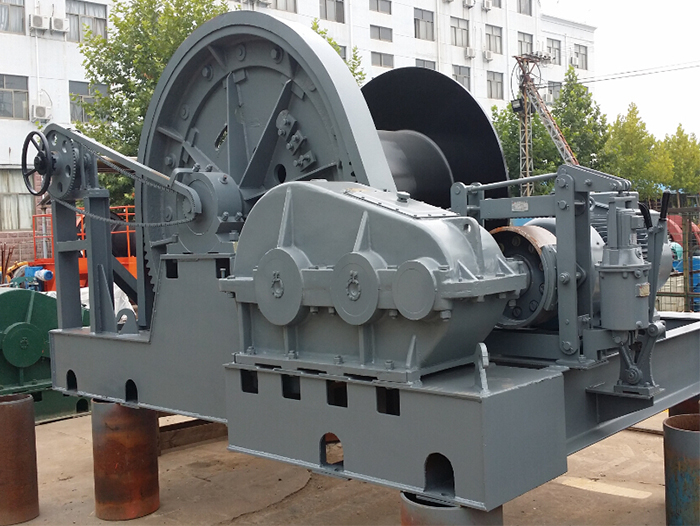

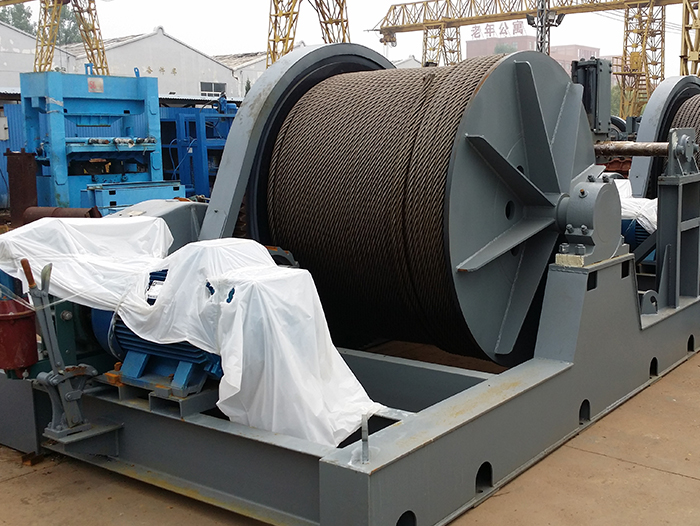

Single Drum Slipway Winch
Single Drum Slipway Winch
Features
- Massive line pull
- Electric-hydraulic brake
- Large grooved drums
- High rope capacity
- Electric , hydraulic motor or diesel engine
- Spooling device
Parameters
| No. | Rated load （KN) | Rated speed （m/min) | Rope capacity (m) | Rope diameters (mm) | electric motor model | Power of motor | Dimension(mm) | Weight (kg) |
| 1 | 10 | 15 | 100 | φ9.3 | Y112M-6 | 3 | 620*701*417 | 270 |
| 2 | 16 | 16 | 150 | φ12.5 | Y132M-6 | 5.5 | 945*996*570 | 500 |
| 3 | 20 | 16 | 150 | φ13 | Y160M-6 | 7.5 | 945*996*570 | 550 |
| 4 | 32 | 9.5 | 150 | φ15.5 | YZR160M-6 | 7.5 | 1430*1160*910 | 1100 |
| 5 | 32 | 12 | 195 | φ15.5 | YZR160M-6 | 7.5 | 1082*1014*610 | 536 |
| 6 | 50 | 10 | 270 | φ21.5 | YZR160L-6 | 11 | 1235*1230*945 | 1560 |
| 7 | 50 | 9.5 | 200 | φ21.5 | YZR160L-6 | 11 | 1620*1260*945 | 1800 |
| 8 | 50 | 9.5 | 250 | φ21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1800 |
| 9 | 50 | 15 | 250 | φ21.5 | YZR180L-6 | 15 | 1235*1230*805 | 1850 |
| 10 | 50 | 20 | 250 | φ21.5 | YZR200L-6 | 22 | 1235*1230*805 | 2000 |
| 11 | 60 | 9.5 | 270 | φ24 | YZR180L-6 | 15 | 1235*1509*805 | 1800 |
| 12 | 80 | 8 | 250 | φ26 | YZR180L-6 | 15 | 2090*1475*956 | 2900 |
| 13 | 80 | 9.5 | 350 | φ26 | YZR180L-6 | 15 | 1075*1598*985 | 2650 |
| 14 | 100 | 8 | 170 | φ30 | YZR200L-6 | 22 | 2090*1475*956 | 3000 |
| 100 | 9.5 | 250 | φ30 | YZR200L-6 | 22 | 1705*1598*985 | 3500 | |
| 15 | 125 | 8 | 300 | φ34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 |
| 16 | 135 | 5 | 290 | φ28 | YZP225S-6 | 22 | 2990*2363*1650 | 6500 |
| 17 | 160 | 10 | 500 | φ37 | YZP225S-8 | 37 | 3750*2400*1850 | 8800 |
| 18 | 200 | 10 | 600 | φ43 | YZR250M-8 | 45 | 3950*2560*1950 | 9900 |
| 19 | 250 | 9 | 700 | φ48 | YZR280M-8 | 55 | 4350*2800*2030 | 13500 |
| 20 | 320 | 9 | 700 | φ56 | YZR315S-8 | 75 | 4500*2850*2100 | 14800 |
| 21 | 600 | 9 | 800 | φ65 | YZR315M-8 | 90 | 4930*3050*2250 | 19500 |
| 22 | 650 | 10.5 | 3600 | φ64 | LA8315-8AB | 100 | 5900*4680*3200 | 46000 |
Option Functions
- Wireless Remote Control (Electric )
- Hydraulic Disc Drum Brake
- Load/Rope Length Indication Readout
- Rachet and Pawl
