Description

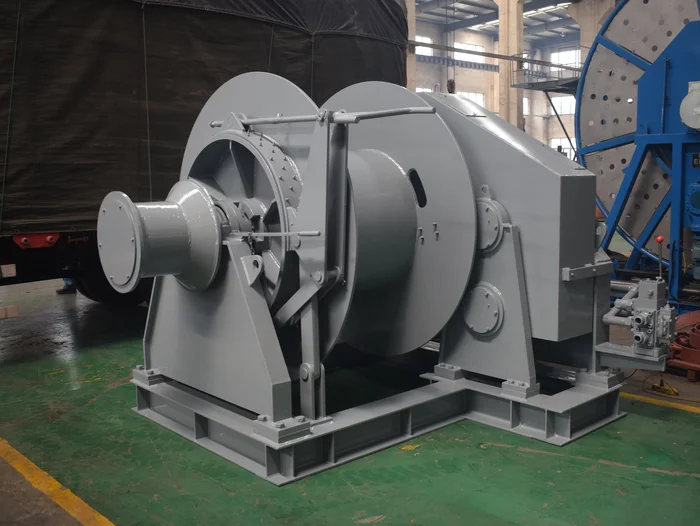

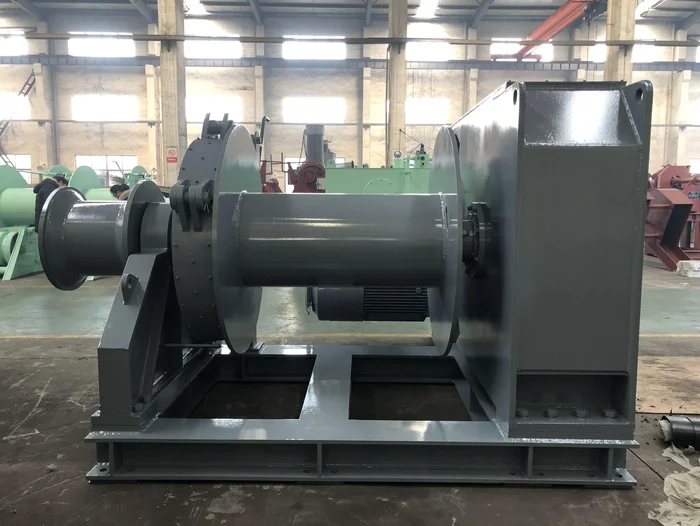

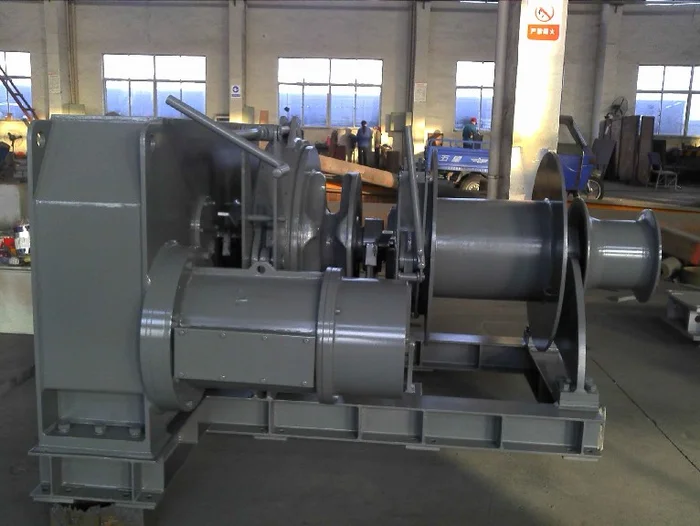

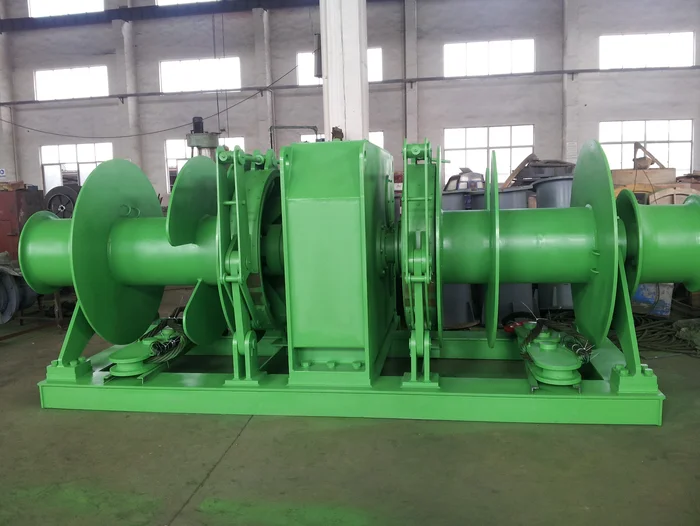

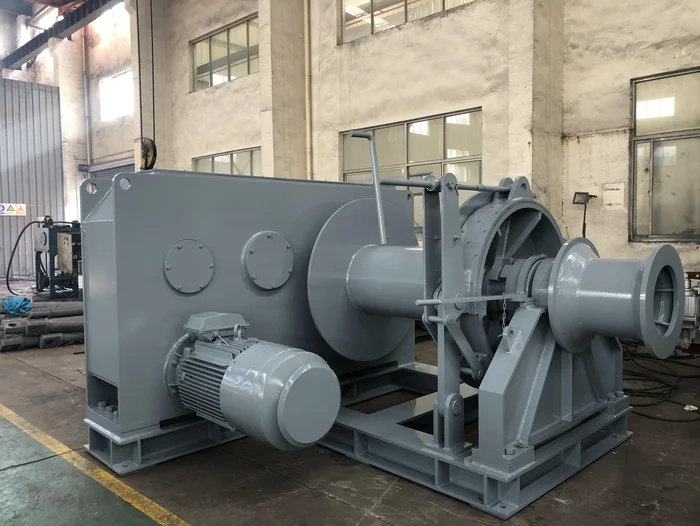

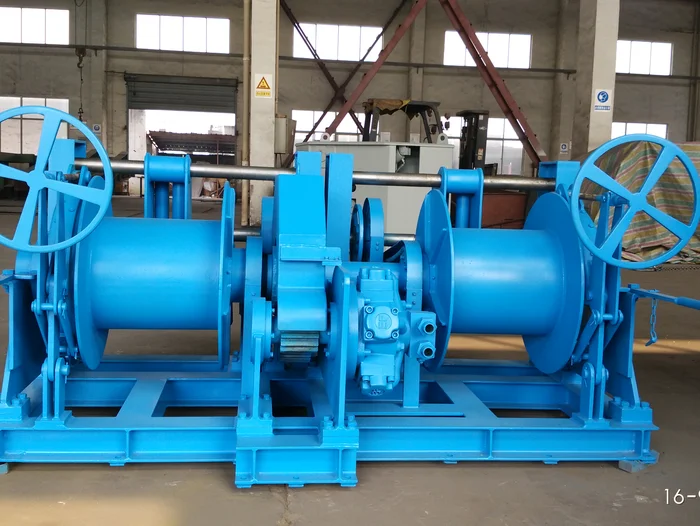

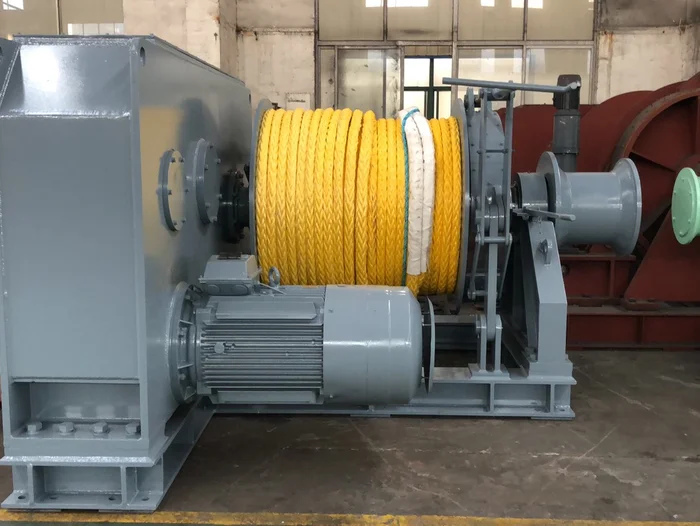

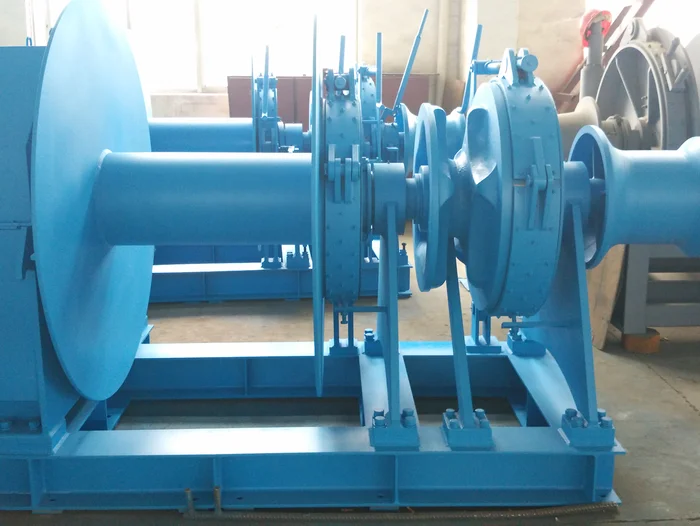

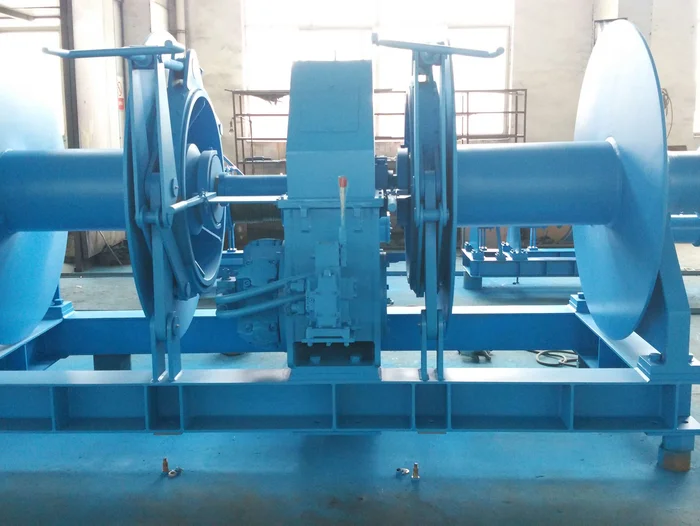

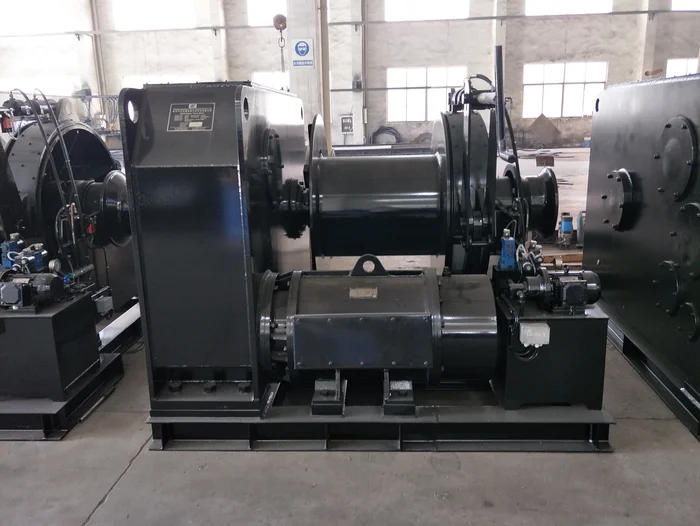

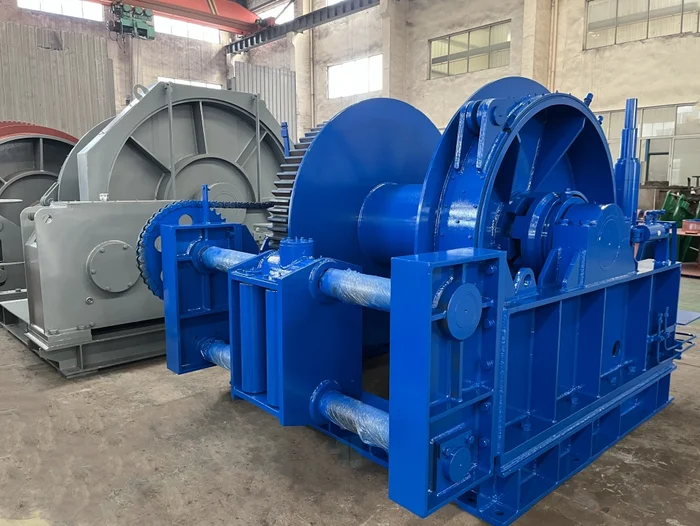

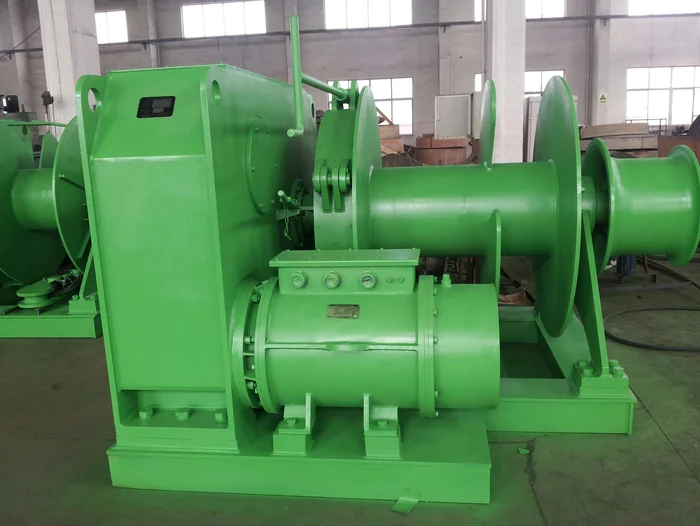

Datai mooring winch has robust design and heavy duty gearing system , it equipped with wear resistant band brake and split dog clutch , the hydraulic brake and clutch are also available .
The pulling capacity is from 5 ton~300 ton for choose . the drum arrangement can be single or double drum configuration , the split drum is available . We can also offer the powerpack station and package of accessories .
Features

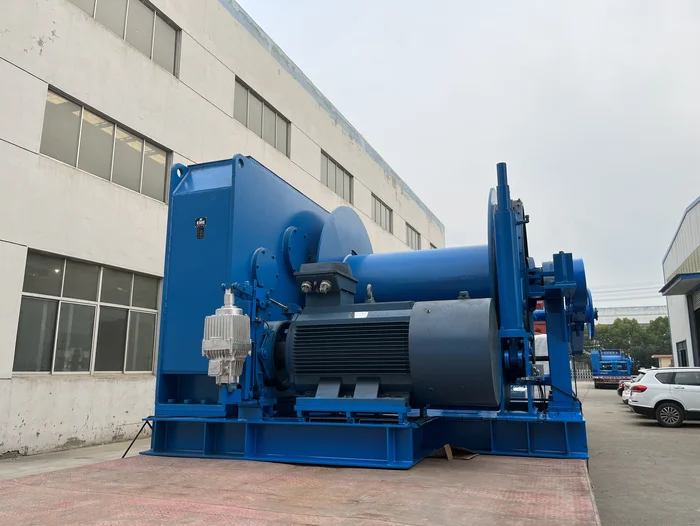

- Electric/electric-hydraulic drive .

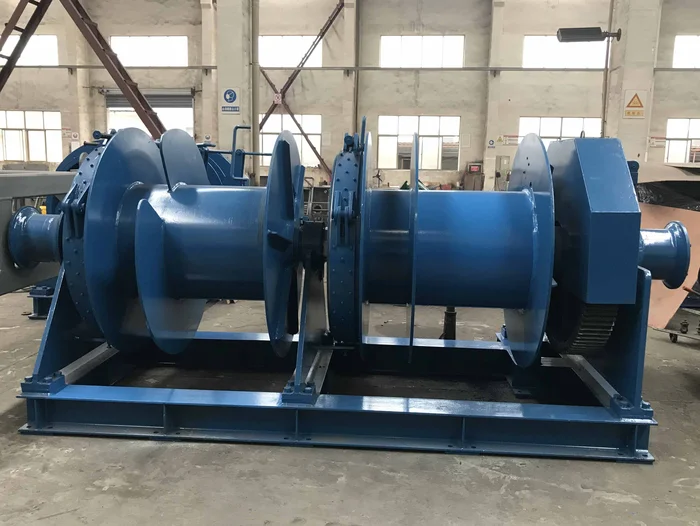

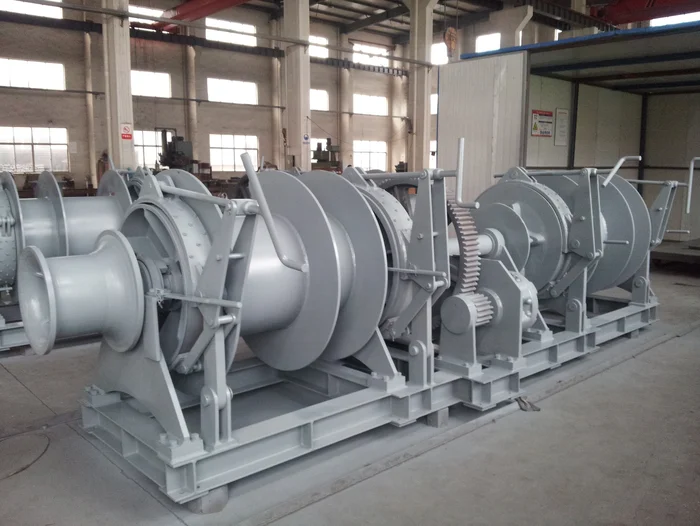

- Single or multi mooring drums configurations
- Manually operated dog clutch and band brake
- Local control stands
- Fail-safe dynamic brakes
Parameters
| Drive System | Electric-hydraulic / full-electric (VFD) |
| Max. BHL | 500 ton |
| Max.Rated Line Pull | 5 ton~300 ton |
| Warping Head | with/without warping head |
| mooring drum arrangement | single /multiple drum configuration / split drum . |
| Clutch and brake | Manual band brake ,manual jaw clutch/ hydraulic band brake , hydraulic dog clutch . |
| Operating temperature | From -25°C to +55°C |
| Hazardous area rating | ATEX ZONE 1/ATEX ZONE 2 |
| Enclosure protection | IP66/IP67 |
| Control system | PLC at local / remote control system (cable or radio). |
| Classification | DNV GL . ABS.CCS.Lloyd’s Register.Bureau Veritas . |
Option Functions
- With or without warping heads
- Wheelhouse bridge control/panel control
- Load Sensor(real-time line tension and payout length data )
- Split mooring drum .
- Constant tension system (hydraulic) or Auto-tensioning system (electric)
- Hydraulic operated clutch or band brake .
- Emergency release system

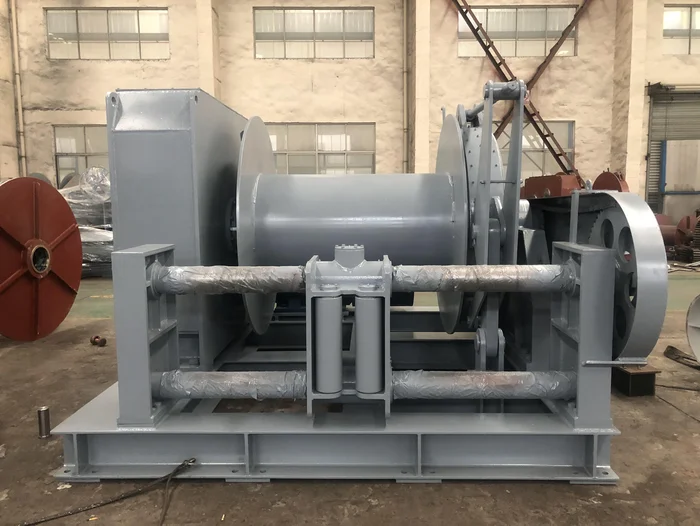

- Wire-spooling system
- Stainless warping head ,mooring durm or cable lifter .
