Description

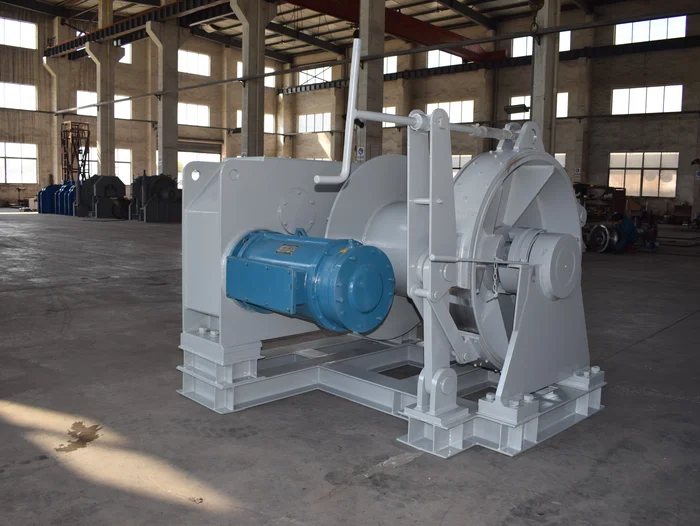

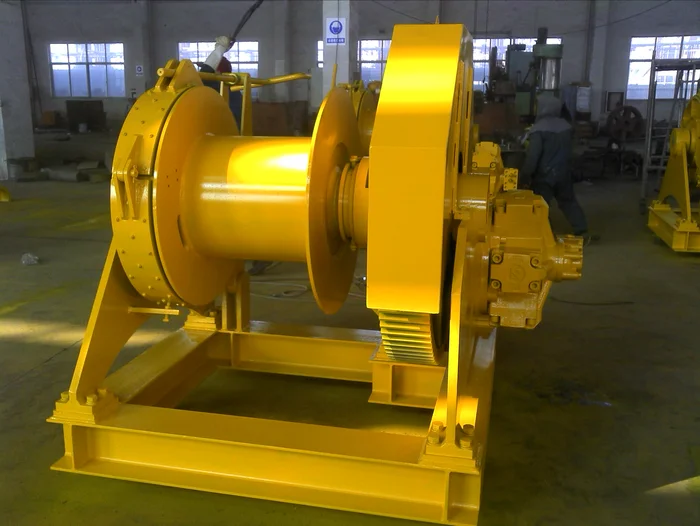

Tugger winch is a small , versatile and auxiliary equipment that is used on deck or offshore rigs to handle relatively light load ,maneuver equipments on deck and provide a helping hand during complex maritime operations . They help crews handle thick cables , manipulate anchors and position cargo .
Features
- Electric/electric-hydraulic drive /Pneumatic .
- Manually operated dog clutch and band brake
- Local control stands
- Fail-safe dynamic brakes
- Small footprint, Compact and rugged design
- Precise variable speed control
- Superior anti-rust protection
Parameters
| Drive System | Electric-hydraulic / full-electric (VFD)/pneumatic |
| Rated line pull capacity@1st layer | 3ton-30ton |
| Line speed@1st layer | 0-15m/min (variable) |
| Type of cable | Synthetic wires or Steel cable . |
| Drum configiration | Single drum,Smooth or Grooved |
| Wire rope capacity | Up to 200 meters (single drum) |
| Auto chain spooling device | with/without |
| Clutch and brake | Manual band brake ,manual jaw clutch/ hydraulic spring band brake , hydraulic jaw clutch . |
| Enclosure protection | IP66/IP67 |
| Control system | PLC at local / remote control system (cable or radio). |
| Classification | DNV GL . ABS.CCS.Lloyd’s Register.Bureau Veritas . |
Option Functions
- joystick bridge control
- wired remote control
- wheelhouse remote control
- hydraulic jaw clutch/band brake
- with/without warping head
- grooved drum
