Description

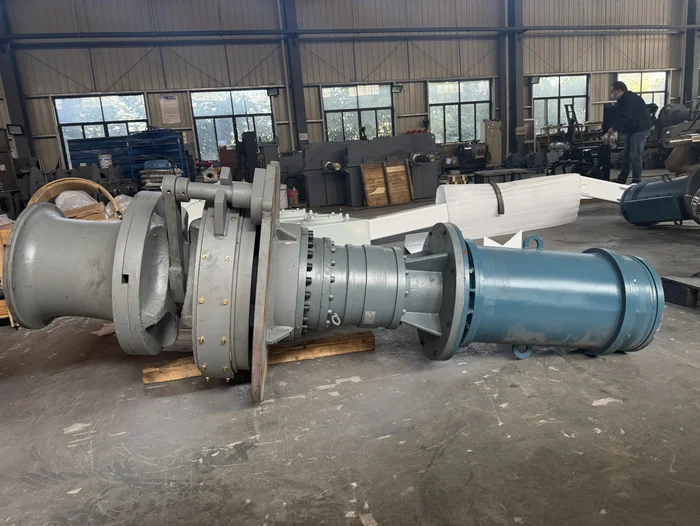

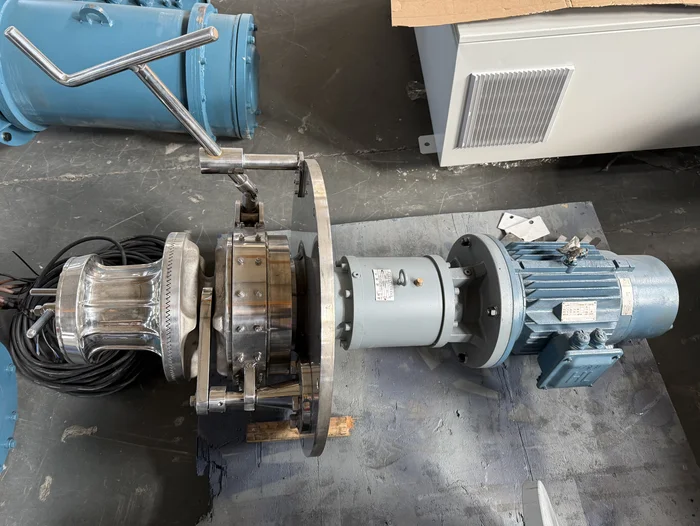

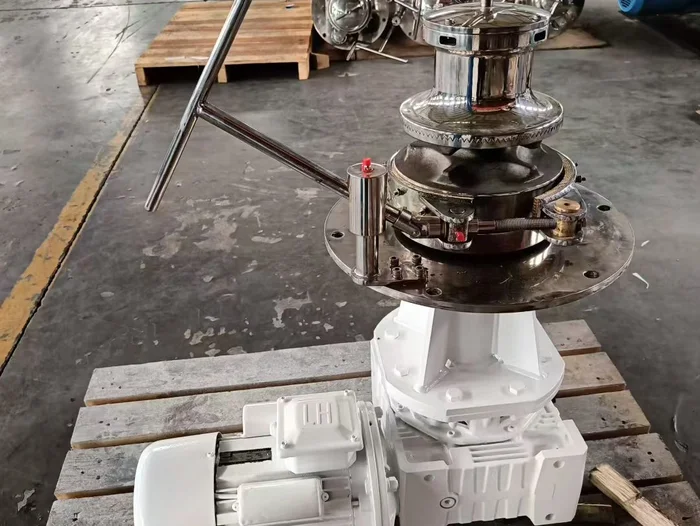

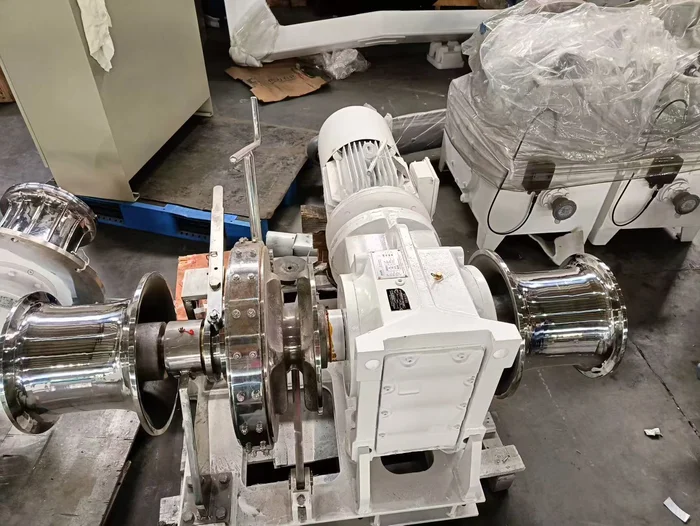

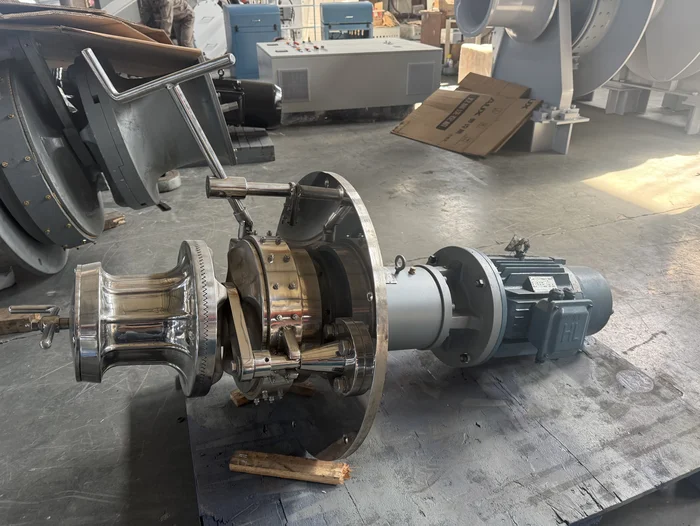

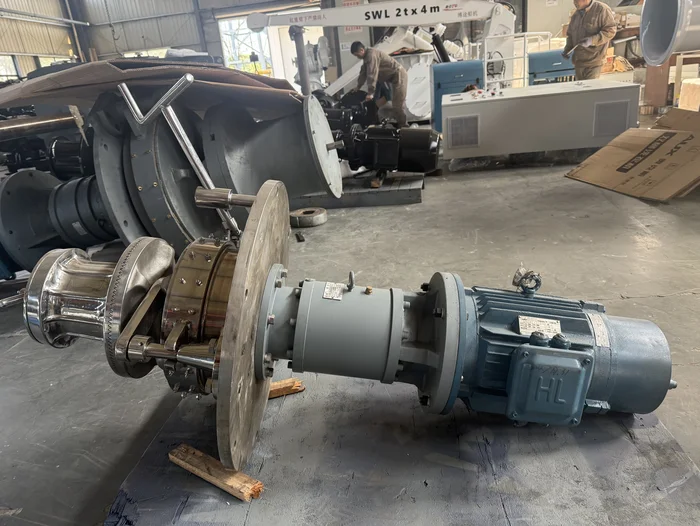

Anchor mooring capstan is a device that can be installed on the deck or under the deck for anchoring operations. It functions similarly to an anchor windlass but differs in appearance. the anchor mooring capstan has only one drum, which winds the anchor cable during operation, but does not clamp or store the cable on the drum. By rotating the drum, the winch controls the release and retrieval of the anchor cable to carry out anchoring operations.
Features
- Electric/electric-hydraulic drive
- Local control stands
- Small footprint, Compact and rugged design
- Warping head
- Reduction Gearbox
- Manual band brake
- Manual dog clutch
- Cable lifter
Parameters
Hydraulic Anchor Mooring Capstan
| Model | Nominal Load (Kn) | Cable Lifter Speed(m/min) | Dia. Of Chain (mm) | Working Differential Pressure (Mpa) | Displacement (ml/r) | Oil Supply (L/min) |
|---|---|---|---|---|---|---|
| YMJP5 | 5 | 40 | 16 | 15.3 | 344 | 17.1 |
| YMJP10 | 10 | 40 | 20 | 15.8 | 664 | 33.1 |
| YMJP15 | 15 | 40 | 24 | 16.2 | 972 | 48.4 |
| YMJP20 | 20 | 40 | 24 | 16.7 | 1256 | 62.6 |
| YMJP25 | 25 | 40 | 24 | 16.5 | 1595 | 79.5 |
Note: For electric type , Pls consult the technical team .
Option Functions
- wheelhouse remote control
- Electric explosion-proof motor
