Description

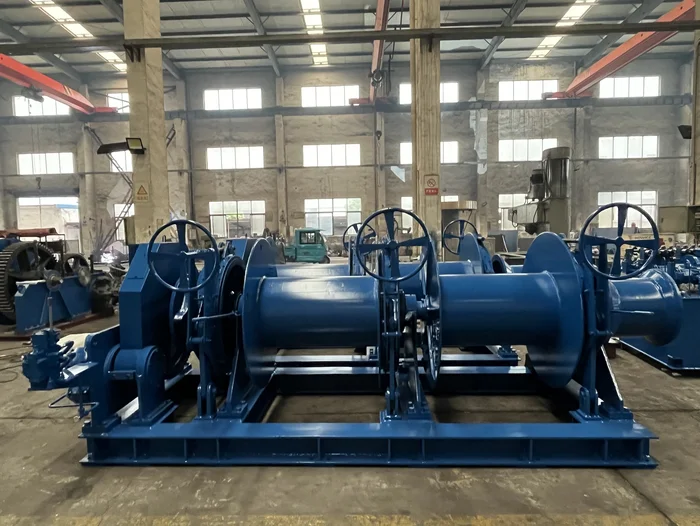

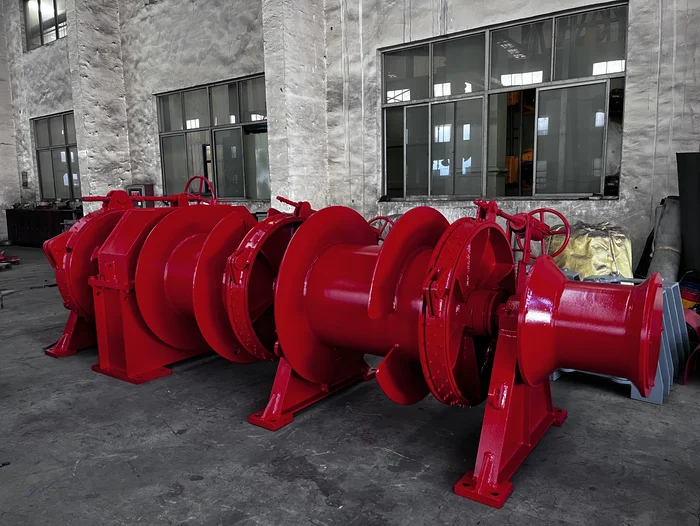

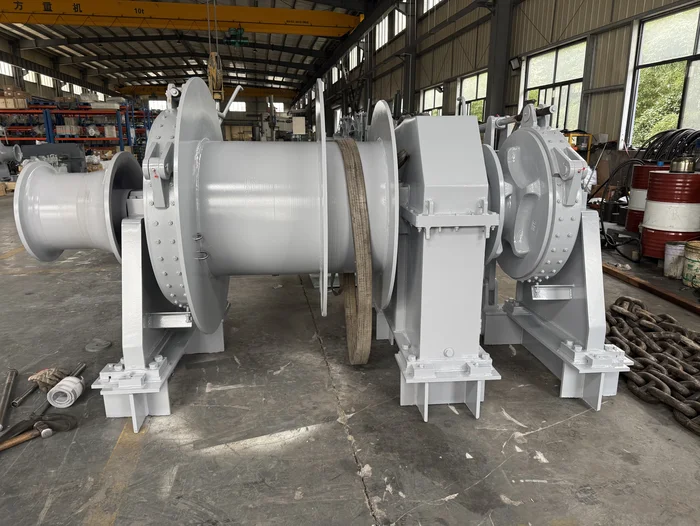

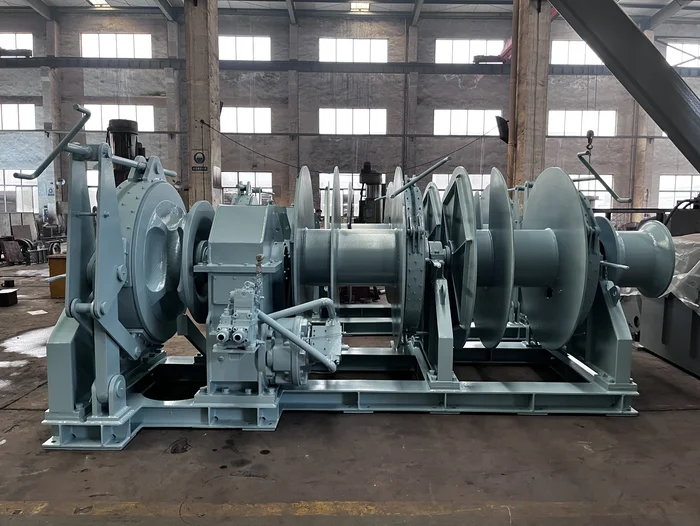

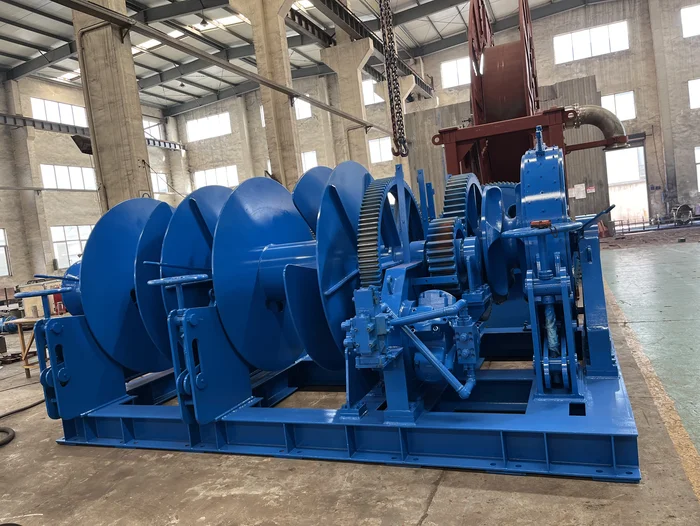

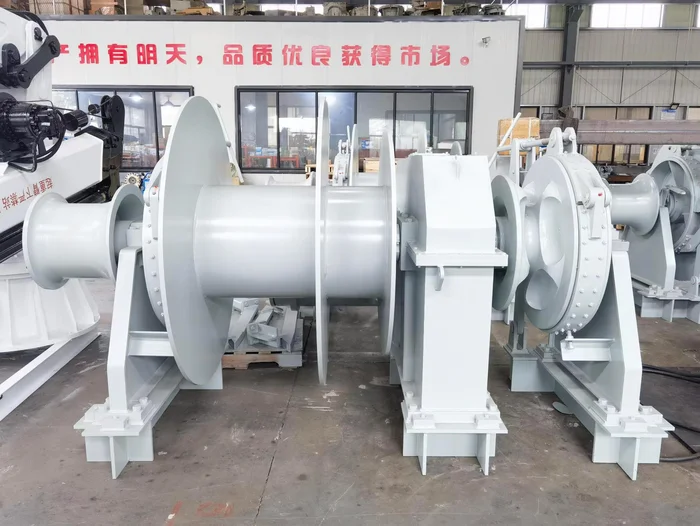

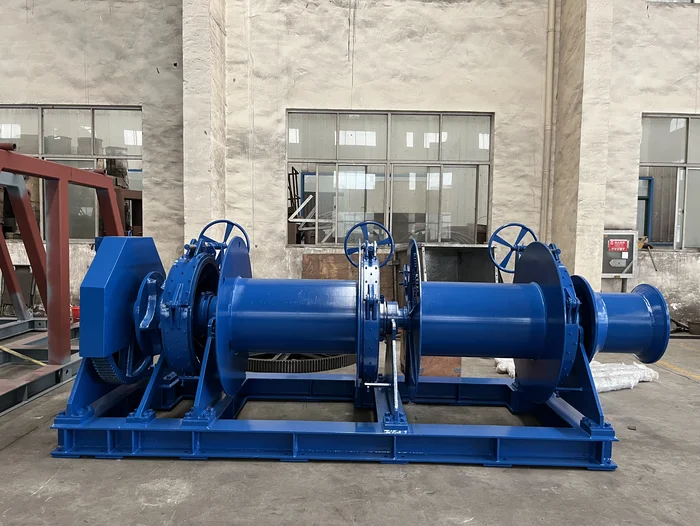

anchor windlass and mooring winch is an important piece of marine deck equipment designed for both anchoring and mooring operations on vessels and offshore platforms. Efficient , reliable and powerful is critical to the successful marine operations .
Electric or hydraulic are available along with the warping head , anchor windlass can be design to suit customers’ specific needs . Datai also offer the powerpack for the hydraulic system . It can be equipped with hydraulic clutch and brake .
Features
- Single or multiple cable lifter
- Single or multiple mooring drums
- Manually operated dog clutch and band brake
- Local control stands
- Electric or electric-hydraulic drive
Parameters
| Drive System | Electric-hydraulic / full-electric (VFD) |
| Chain Diameter | φ12-φ120mm |
| Chain Speed | ≥9m/min |
| Cable Lifter Arrangement | Single cable-lifter/symetrical cable-lifter |
| mooring drum | single /multiple drum configuration / split drum . |
| Clutch and brake | Manual band brake ,manual jaw clutch/ hydraulic band brake , hydraulic dog clutch . |
| Operating temperature | From -40°C to +55°C |
| Hazardous area rating | ATEX ZONE 1/ATEX ZONE 2 |
| Enclosure protection | IP66/IP67 |
| Control system | PLC at local / remote control system (cable or radio). |
| Classification | DNV GL . ABS.CCS.Lloyd’s Register.Bureau Veritas . |
Option Functions
- With or without warping heads
- Wheelhouse bridge control/panel control
- Chain length or speed measurement .
- Split mooring drum .
- Constant tension system (hydraulic) or Auto-tensioning system (electric)
- Hydraulic operated clutch or band brake .
- Emergency release system
- Wire-spooling system
- Stainless warping head ,mooring durm or cable lifter .
