Description
An anchor windlass winch is an essential marine equipment on the deck , it is used for raising and lowering the ship’s anchor chain , to help the vessel anchor and it’s position is stabilized in specific water and dock . it assist the vessel take emergency braking measures .

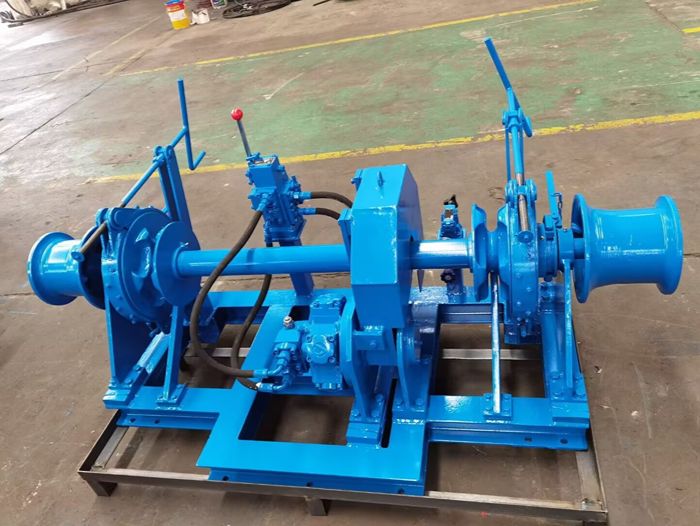

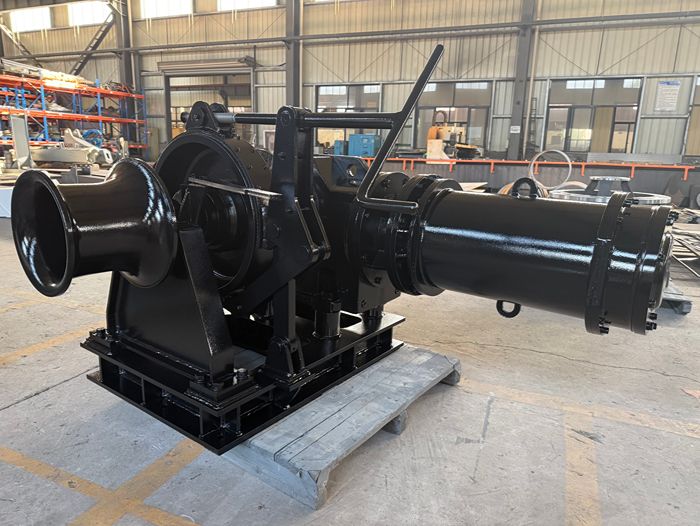

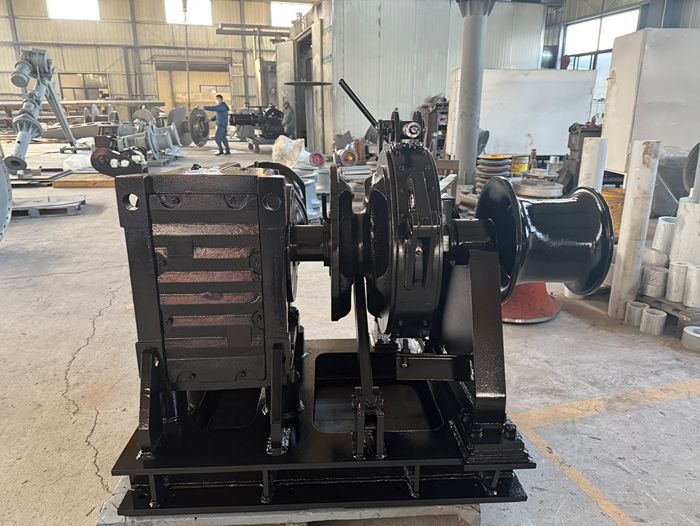

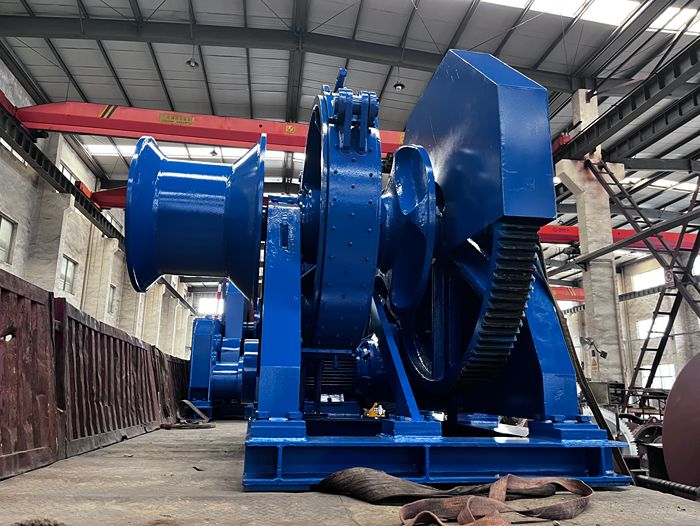

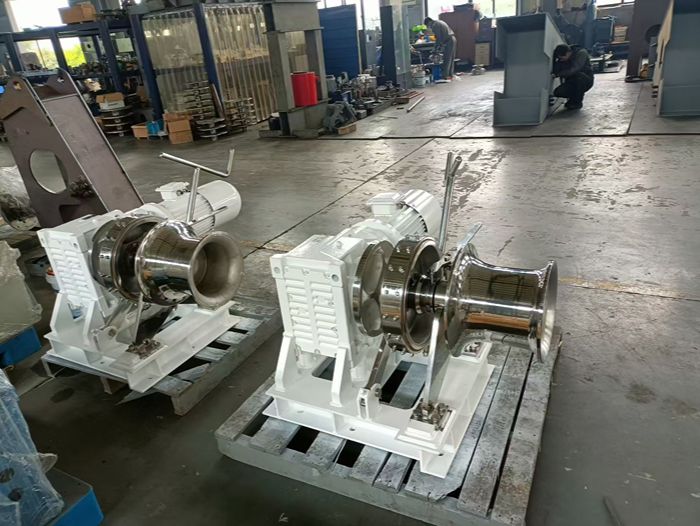

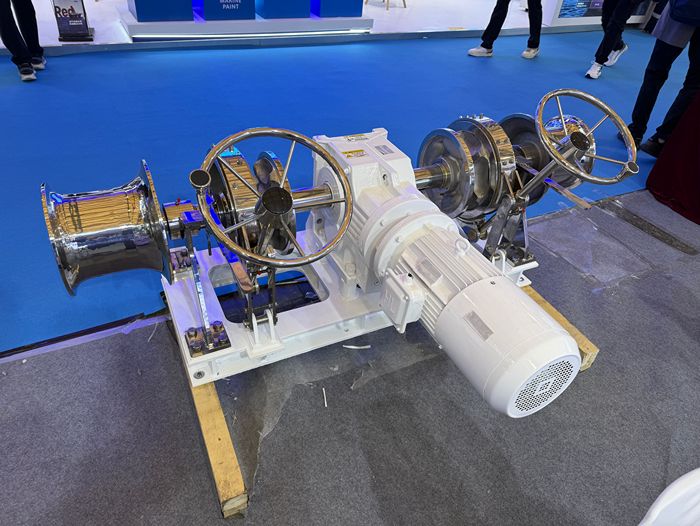

The arrangement can be symmetrical double caber-lifter windlass and single cable-lifter windlass (right-hand model or left-hand model ) , the range of chain diameter from φ12-φ120mm is available ,
With marine-grade durability and corrosion-resistant material , anchor windlasses help improve anchoring safety and vessel stability during marine operations .
Features
- Chain diameter φ12-φ120mm
- Single or double cable lifter .
- Manual band brake and dog clutch .

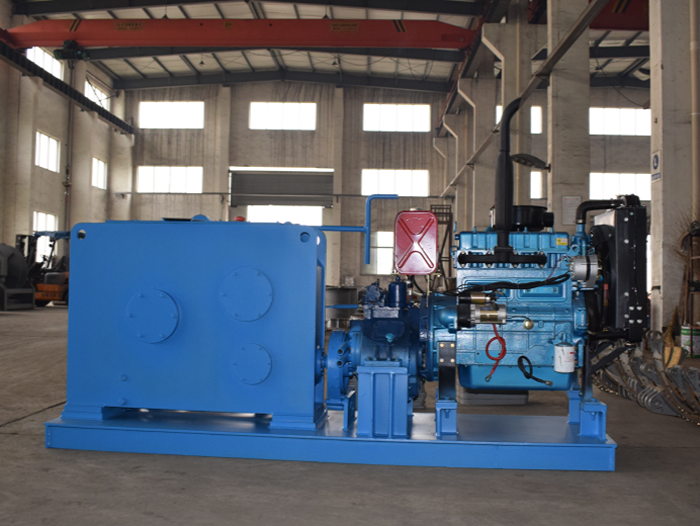

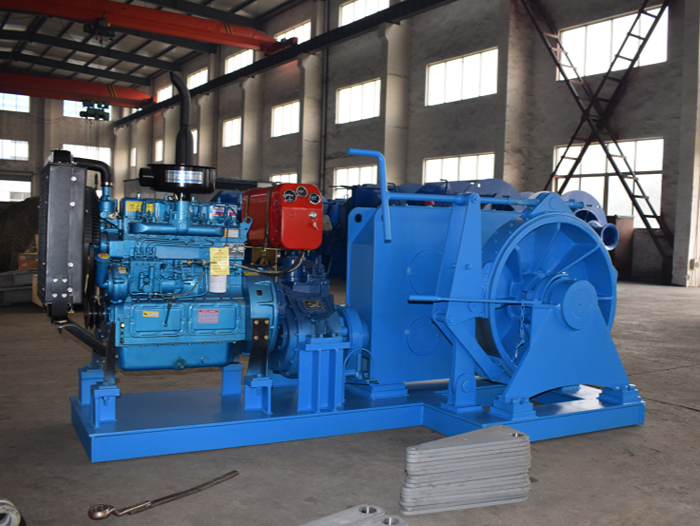

- Electric/hydraulic/Diesel engine
- Cast iron warping head .
Parameters
| Drive System | Electric-hydraulic / full-electric (VFD)/Diesel engine |
| Chain Diameter | φ12-φ120mm |
| Chain Speed | ≥9m/min |
| Cable Lifter Arrangement | Single cable-lifter/symetrical cable-lifter |
| Clutch and brake | Manual band brake ,manual jaw clutch/ hydraulic band brake , hydraulic dog clutch . |
| Operating temperature | From -40°C to +55°C |
| Hazardous area rating | ATEX ZONE 1/ATEX ZONE 2 |
| Enclosure protection | IP66/IP67 |
| Control system | PLC at local / remote control system (cable or radio). |
| Classification | DNV GL . ABS.CCS.Lloyd’s Register.Bureau Veritas . |
Options
- chain counter
- Wheelhouse control/Bridge control
- Wireless remote control
- Overload protection
- Brake monitoring
- Hydraulic dog clutch and band brake
