Anchor Handling and Towing Winches

Class-approved anchor handling and towing winches — engineered for the loads that define offshore operations.

50ton-500ton
Brake holding capacity
0-15m/min (variable)
Line speed@1st layer
32mm-76mm
Diameter of wire rope

Vessel Application:

  • AHTS
  • MPSV
  • PSV
  • OSV
  • CONSTRUCTION VESSEL
  • ERRV
  • OFFSHORE WIND VESSEL

Request a Quote

Download Product Manual

    Description

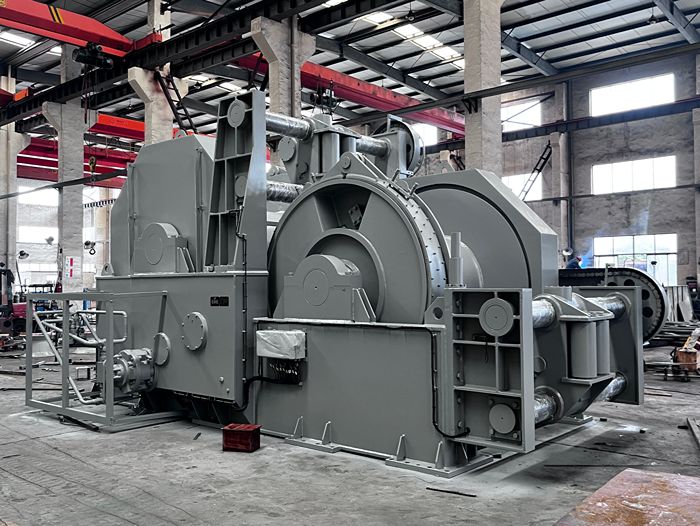

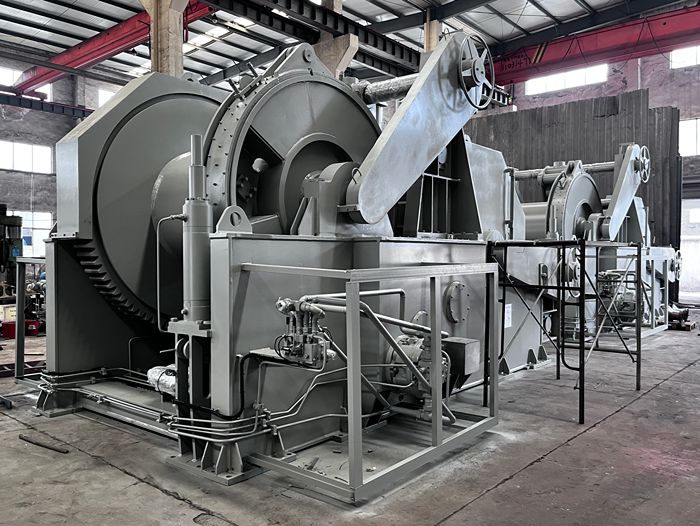

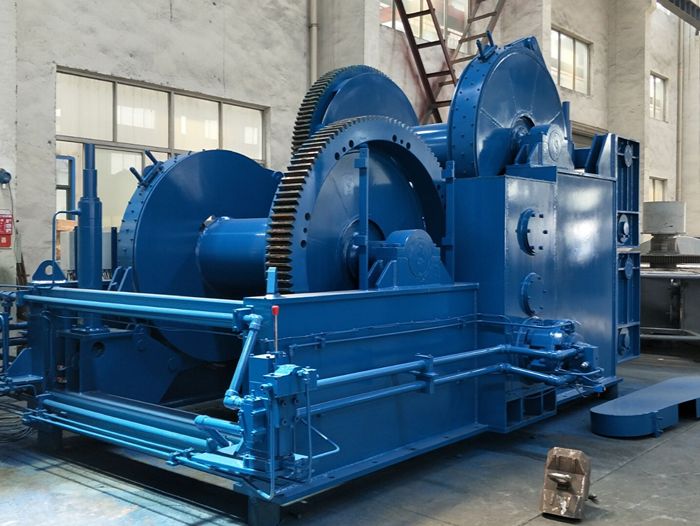

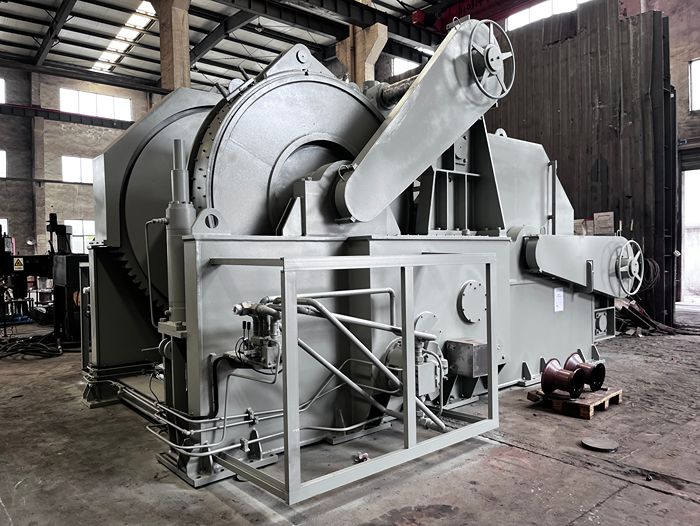

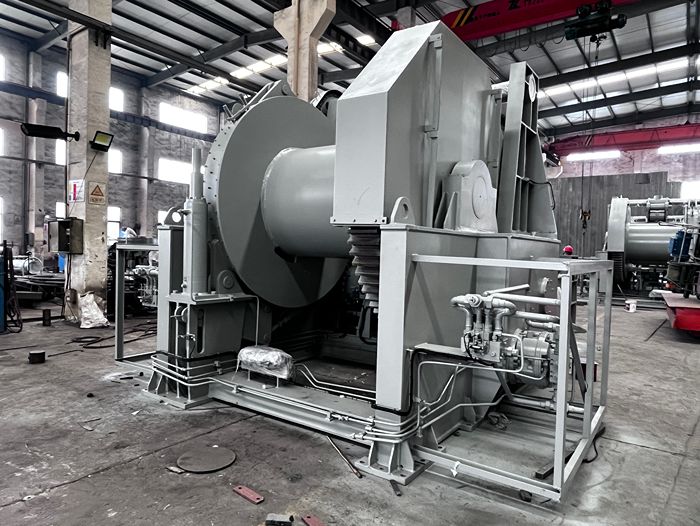

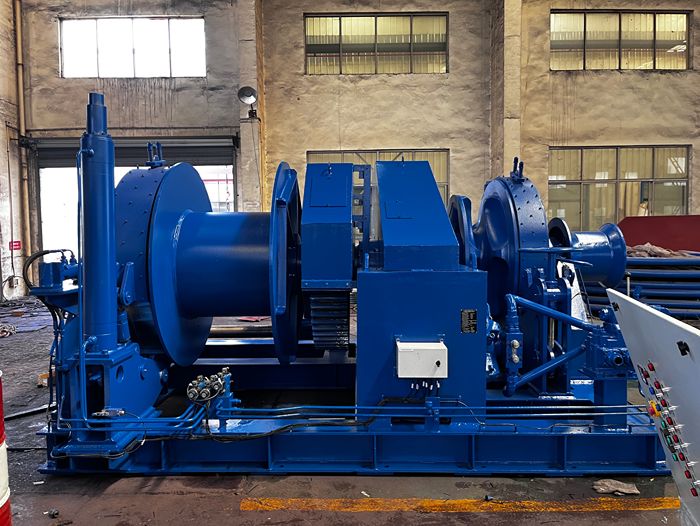

    The Anchor Handling Towing Winch (AHTW) is mechanical device, it is often with double drum, we call it waterfall winch, the upper drum is for towing, the lower drum is for anchor handling, if the load capacity is big, then the speed will be slow, the towing line can reach 500-1500 meters. It also can be three drums or add the side cable lifter according to requirements.

    Engineered Capabilities & Core Configurations

    Our integrated winch suites are built to comply with strict international maritime regulations and can be customized to match your specific hull design and deck footprint:

    Multi-Drum Versatility
    Available in double or triple drum configurations (waterfall or side-by-side layouts) to allow seamless shifting between independent anchor handling and heavy ocean towing operations.
    Dynamic Render & Recovery (R&R)
    Equipped with advanced hydraulic or electric drive systems that automatically adjust line tension in real time, absorbing massive kinetic shocks caused by heavy wave action.
    Heavy-Gauge Structural Integrity
    Built exclusively from high-strength marine steel plates (such as Class-approved GB/T Q355B or higher) with fully reinforced main shafts, drum shells, and heavy-duty foundation frames.
    Fail-Safe Multi-Disc Braking
    Features robust, high-holding hydraulic braking architecture capable of instant lockdown to securely hold ultimate breaking loads under static conditions.

    Features

    1. Brake holding capacity up to 500 ton .Line pulling capacity up to 350 ton .
    2. Hydraulic Jaw clutch
    3. Failsafe spring-applied hydraulic release band brake
    4. Local control stands
    5. Electric , hydraulic motor or diesel engine

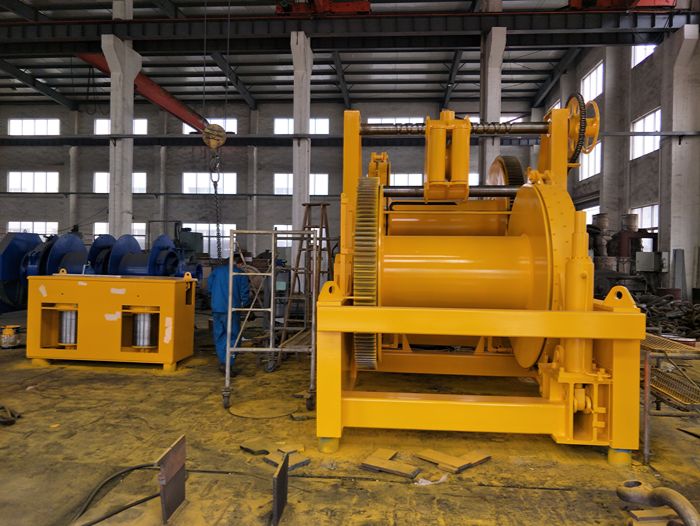

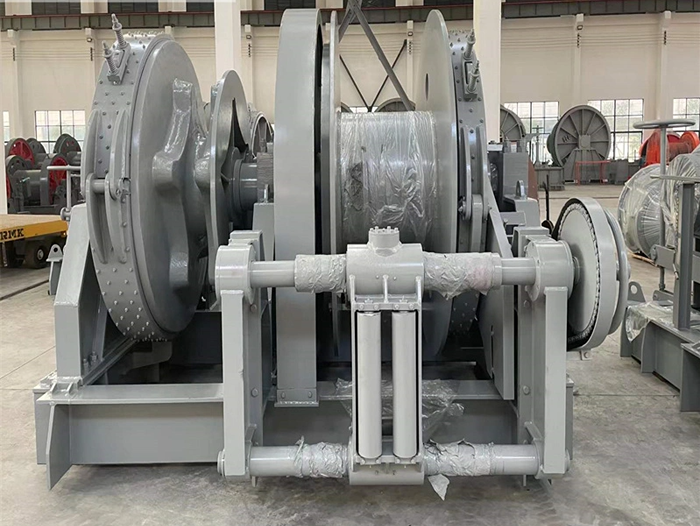

    6. Spooling device

    Parameters

    Drive SystemElectric-hydraulic / full-electric (VFD)
    Rated line pull capacity@1st layer 10ton-250ton
    Brake holding capacity 50ton-500ton
    Line speed@1st layer0-15m/min (variable)
    Drum configiration Single drum/ multiple drums in waterfall or in-line.
    Wire rope capacityUp to 5000 meters (single drum)
    Diameter of wire rope32mm-76mm
    Auto chain spooling device single drum/double drum
    Clutch and brakeManual band brake ,manual jaw clutch/ hydraulic spring band brake , hydraulic jaw clutch.
    Operating temperature From -40°C to +55°C
    Hazardous area ratingATEX ZONE 1/ATEX ZONE 2
    Enclosure protectionIP66/IP67
    Control systemPLC at local / remote control system (cable or radio).
    ClassificationDNV GL . ABS.CCS.Lloyd’s Register.Bureau Veritas.

    Option Functions

    • Chain Stoper
    • Emergency Quick Release
    • Load/Rope Length Indication Readout
    • Auto-Slack/Constant Tension (Ct) Model
    • Wheelhouse Remote Control/Bridge Control

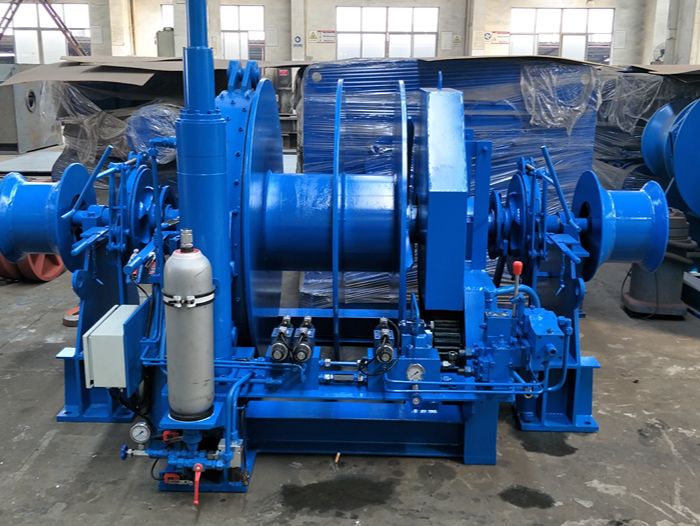

    • Side Gypsy or Warping Drum
    • Secondary Winch
    • Double Drum Waterfall Type or Side-by-Side Type
    • Witness Test by Class and Certificate to Issue
    • Side-by-Side Triple Drum Winch
