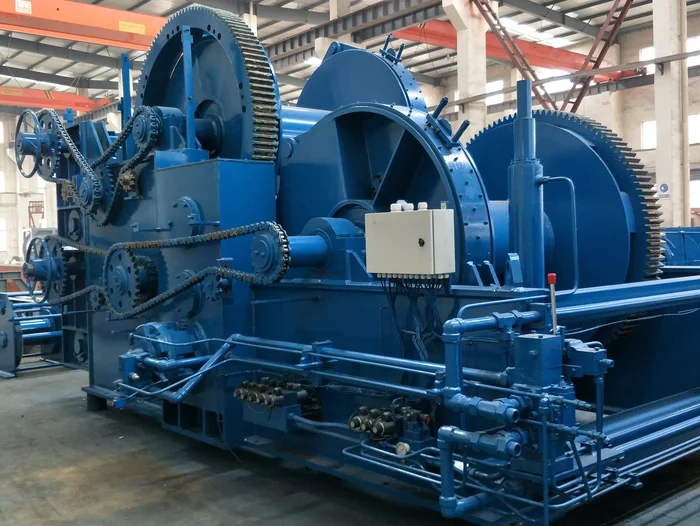

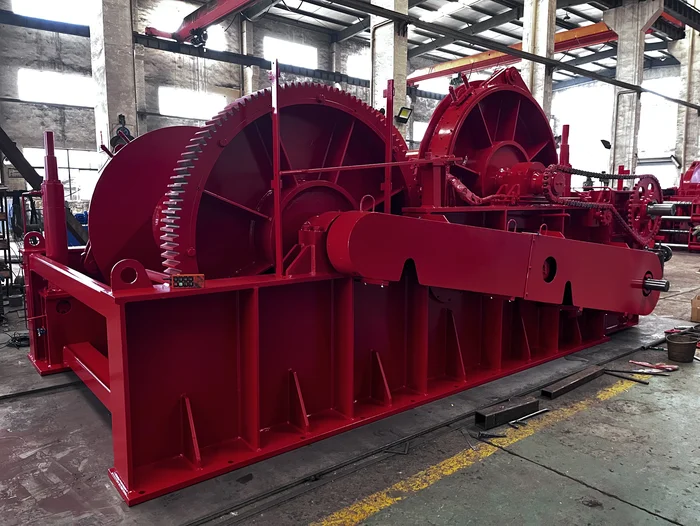

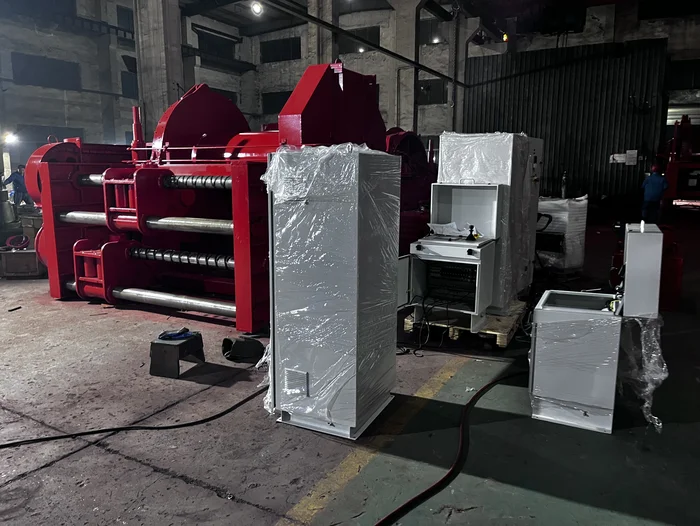

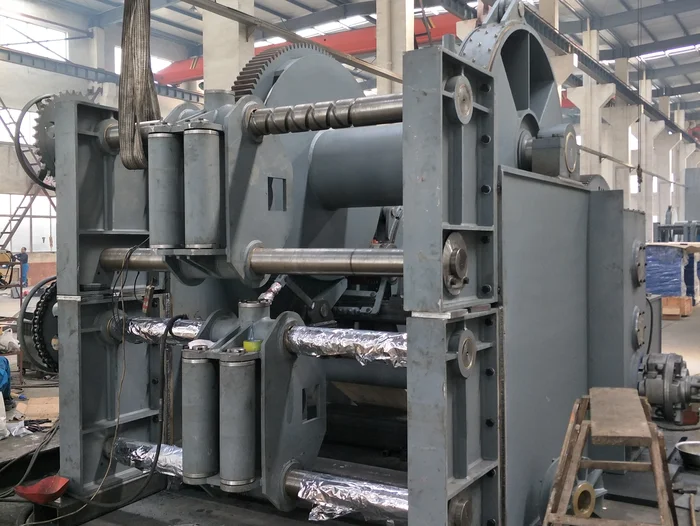

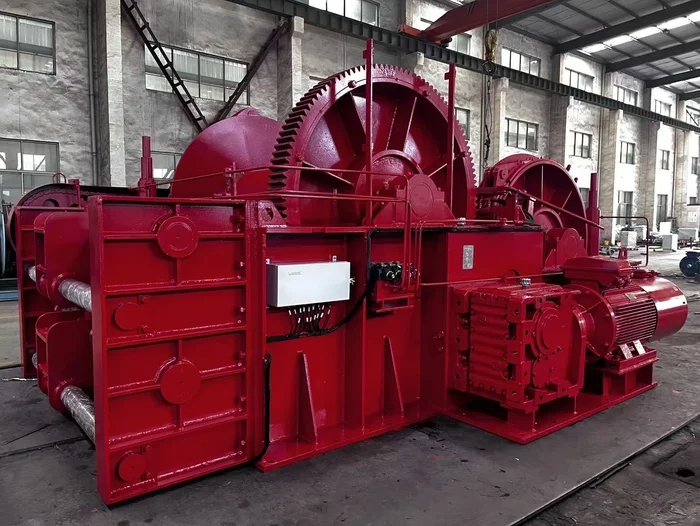

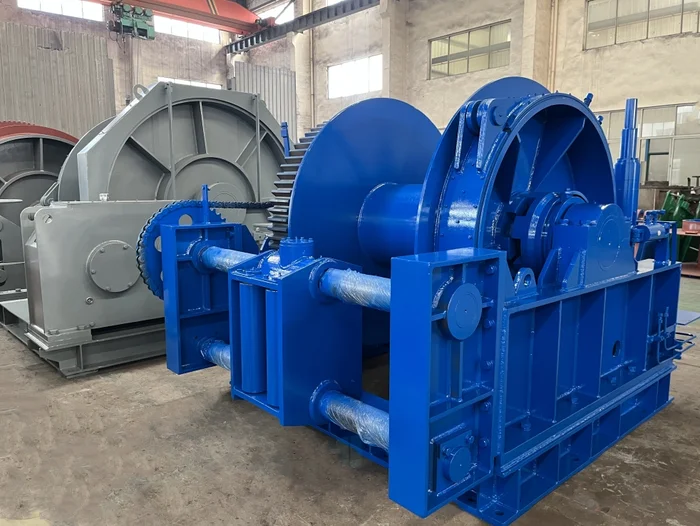

Description
The position mooring winch is widely use in offshore oil and gas , marine construction and renewable energy industries , it focus on the continuous tension control and precise line adjustment , the winches can be with advanced constant tension system , intergrated sensors for real-time monitoring and centralized control intergration system . These features ensure the implementation of work at sea to maintain vessel stability and operational accuracy during offshore activities . It can be 4-point, 8-point and 12-point mooring operations .Multiple drum is available for options , it can be single drum and double drum.
Features
- single drum
- Drive motor
- Manual dog clutch
- Manual Band Brake system
- local control stand
- Electrical , hydraulic or diesel engine
Parameters
| Drive System | Electric-hydraulic / full-electric (VFD) |
| Max.Rated Line Pull | up to 3000 kn |
| Rated Line Speed | Typically 5-15m/min |
| Drum Capacity | up to 1200 meters |
| mooring drum arrangement | single /multiple drum configuration / split drum . |
| Clutch and brake | Manual band brake ,manual jaw clutch/ hydraulic band brake , hydraulic dog clutch . |
| Operating temperature | From -25°C to +55°C |
| Enclosure protection | IP66/IP67 |
| Control system | PLC at local / remote control system (cable or radio). |
| Classification | DNV GL . ABS.CCS.Lloyd’s Register.Bureau Veritas . |
Option Functions
- Wheelhouse Remote control
- Emergency stop system
- Emergency quick release system
- Hydraulic band brake and dog clutch
- Automatic spooling device
- Rope speed indication
- Double drum (front and rear , side-by-side or waterfall )
- Advanced constant tension system
- Tension meters (load cells)
- Rope length monitoring (payout counters)
